Halo 24 48nm Kapalı Radar Anteni

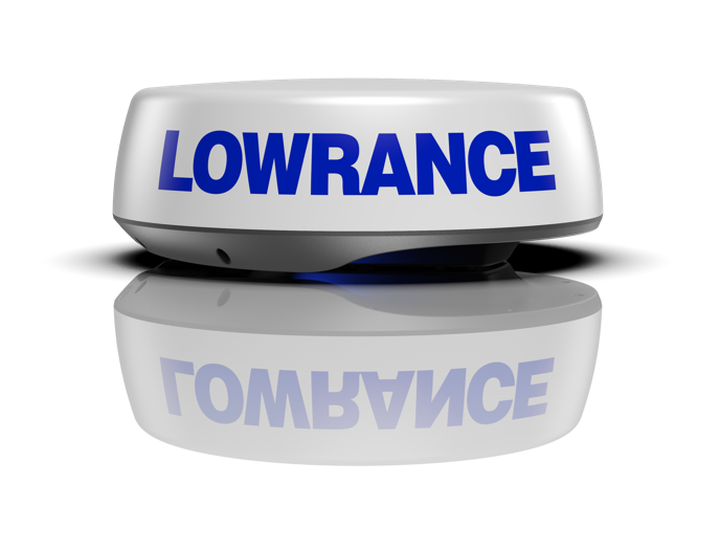

Lowrance HALO 24" Pulse compression dome radar, with industry-first 60 RPM operation. Built in VelocityTrack™ Doppler technology, simultaneous short and long-range coverage up to 48 nautical miles from one compact 24-inch dome antenna. .png)
Overview
Overview
HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna
Key Features
- 48 nm range from a compact 24-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both near and far
- Ultra-fast 60 RPM operation at ranges up to 2nm
- VelocityTrack™ Doppler technology for collision avoidance
- Easy operation with harbour, offshore, weather, and bird modes
- MARPA target tracking (up to 10 targets, 20 in dual range).
- Ready instantly from standby
- All new lightweight, low profile dome design, with integrated LED lights
Unique Selling Points The Ultimate View for Collision Avoidance:
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings.
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Environmental
Operating Temperature-25° to +55°C (-13° to +130°F)Relative humidity+35° C (95° F), 95% RHWaterproofIPX6Max relative wind velocity51 m/sec (100 Knots)ComplienceCE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002Power & Dimensions
Power consumption (with 10m cable)Operating: 14.5 to 27W at 13.8 VStandby3.9 W (Typ.) at 13.8 V DC ~ 170 mADC input (at end of radar cable)9 V to 31.2 V DC (12/24 V systems)Reverse polarity protectionYesMinimum startup voltage10.75 V DCTransmitter source (pre-heating time)No magnetron – Instant OnPhysical
Outside dimensionsØ Diameter 610 mm (24”), Height 225 mm (8.9”)Scanner weight (no cable)6.75kg (14.9 lbs)Radar and Antenna parameters
Radar ranges100 m (328 ft) to 48nm with 18 range settings, (nm/sm/km)Rotation (mode dependent)20 - 60 rpm (mode and MFD dependent)Transmitter frequencyX-band - 9.4 to 9.5 GhzTransmitter source (warm-up time)No Magnetron – all solid state. Instant On™Plane of polarizationHorizontal PolarizationTransmitter peak power output25WMinimum range6 m (19.7 ft)Sweep repetition frequency700-2400 Hz (mode dependent)Pulse length0.04 - 64 usecSweep bandwidth48 MHz maxHorizontal beam width (Tx and Rx antenna)3.9° nominal (-3 dB width)Target Seperation ControlOFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal)Vertical beam width (Tx and Rx antenna)22° (-3B width nominal)Side lobe level (Tx and Rx antenna)Below -18 dB (within ±10°);Below -24 dB (outside ±10°)Noise figureLess than 5 dB nominalCommunications/Cabling
ProtocolEthernet 100 Base TMaximum inter connecting cable length30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs
