Link-6S VHF Marin Telsiz(Siyah)
Kategori
Marka
Stok Kodu
EJLMUX59
Garanti Süresi
24 Ay
Fiyat
317,00 EUR + KDV
Havale
12.136,04 TL
(%5,00 havale indirimi)
1.899,89 TL den başlayan taksitlerle!!
%5
12.774,78 TL
13.447,14 TL

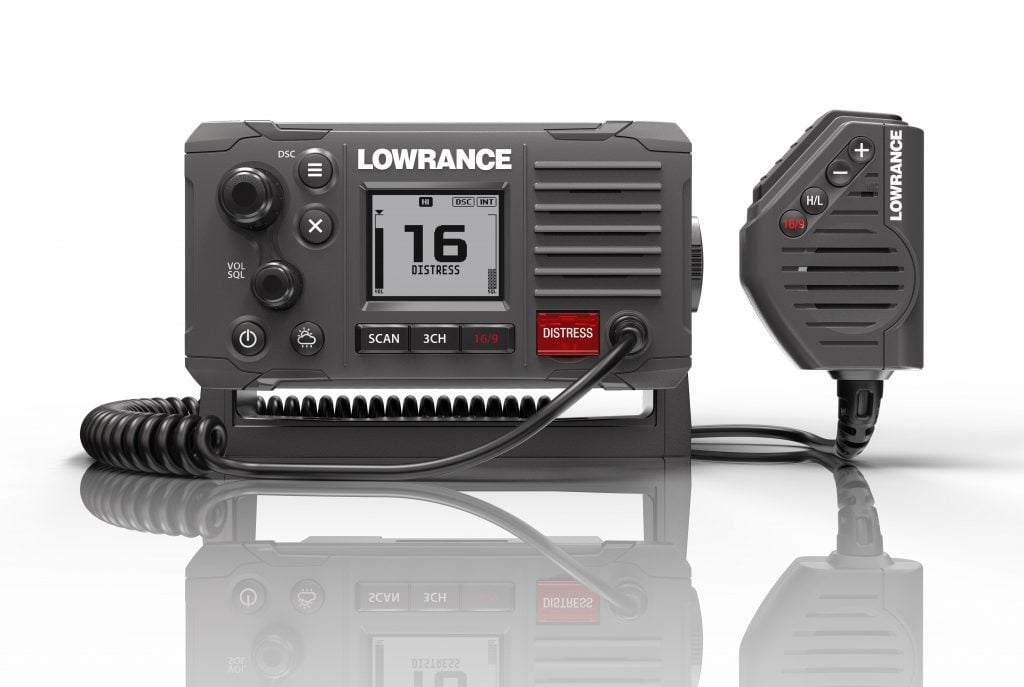

Lowrance Link-6 Marine DSC VHF Radio (Black)
Overview
- Replaces the current Link-5 entry level VHF
- NMEA0183
- New front mountable mechanical design for easy installation
- Available globally in white or grey
Key Selling points
- Easy front mount solution
- Low profile to style match Lowrance MFD’s, 2 colour options
- Clear white dot matrix LCD
- Inverted LCD night mode for reduced light emission
- Dimmable to 0.5 nits for night operation
- Four button fist mic
- Full inbuilt country specific channel banks no requirement for programming
New features
Start up wizard
- Region & Country selection
- Enter MMSI
- Call sign
- GPS source selection
- Time offset
Improved SCAN features
- ALL SCAN
- ALL CHANNELS + 16
- MY CHANNELS
- MY CHANNELS + 16
Favourites shortcut
- Customizable favourite functions
- Defaults
- Contrast
- Sensitivity
- VHF info
Channel name
- My Channels
- Set Channels as favourite channels
- Enter favourite channel mode by long pressing channel dial
- Only favourite channels will be included in channel scrolling
Night Mode
- Invert the LCD display
- Minimizes light emitted for night mode operation
- Dimmable to 0.5 NITS
- LED’s dim with backlight control
General
| Frequency Range: Transmit | 156.025~157.425 MHz |
| Frequency Range: Receive | 156.050~163.275 MHz |
| Number Of Channels | US / INT |
| Oscillate Mode | PLL |
| Modulation | FM(16KOG3E) DSC(16K0G2B) |
| Channel Spacing | 25KHz |
| Frequency Stability | ±5 PPM |
| Temperature range | -15°C to +55°C (5°F to 131°F) |
| Normal Working Voltage | +13.6 V DC |
| Minimum operating Voltage | 10 V DC |
| Low battery detect Voltage | 10.5 ± 0.5 V DC |
| Digital Selectivity Calling (DSC) | Class D |
RECEIVER
| Intermediate Frequency : 1st | 38.85/21.7 MHz |
| Intermediate Frequency : 2nd | 450 KHz |
| Sensitivity : 12dB SINAD | -6 dBuV(EMF) |
| Squelch Sensitivity: at tight | 6 dBuV(EMF) |
| Spurious Response Rejection Ratio | 70 dB |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation Response | 68 dB |
| S/N at 3KHz Dev. | 40 dB |
| Audio Output Power At THD 10% | 2.5 W |
| Audio Distortion | 10 % |
| Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz dB |
| Current Drain : Max Audio Power | 1.5 A |
| Current Drain : Stand-By | 0.5 A |
| 2ND RX Sensitivity For 12dB SINAD | 0 dBuV(EMF) |
| 2ND RX bit error ratio@-107dBm | 10-2 |
Transmitter
| Frequency error | ±1.5KHz |
| RF Power | Hi23W ± 2W :Lo 0.8W ± 0.2W |
| Maximum Deviation | ± 5 KHz |
| S/N at 3KHz Dev. | 40 dB |
| Modulation Distortion ±3KHz | 10 % |
| Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz |
| Spurious/Harmonic Emissions: Hi/LO | 0.25uW |
| Modulation Sensitivity | 15 mV |
| Current Drain At 12V DC | Hi Power 6A: Lo Power 1.5A |
| DSC TX deviation at 1.3K | 2.6±0.26 KHz |
| DSC TX deviation at 2.1K | 4.2±0.42KHz |
| ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
| ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
Not:
- Bu ürün Türk bayraklı teknelerde, kıyı emniyeti genel müdürlüğünün izinine tabidir.
