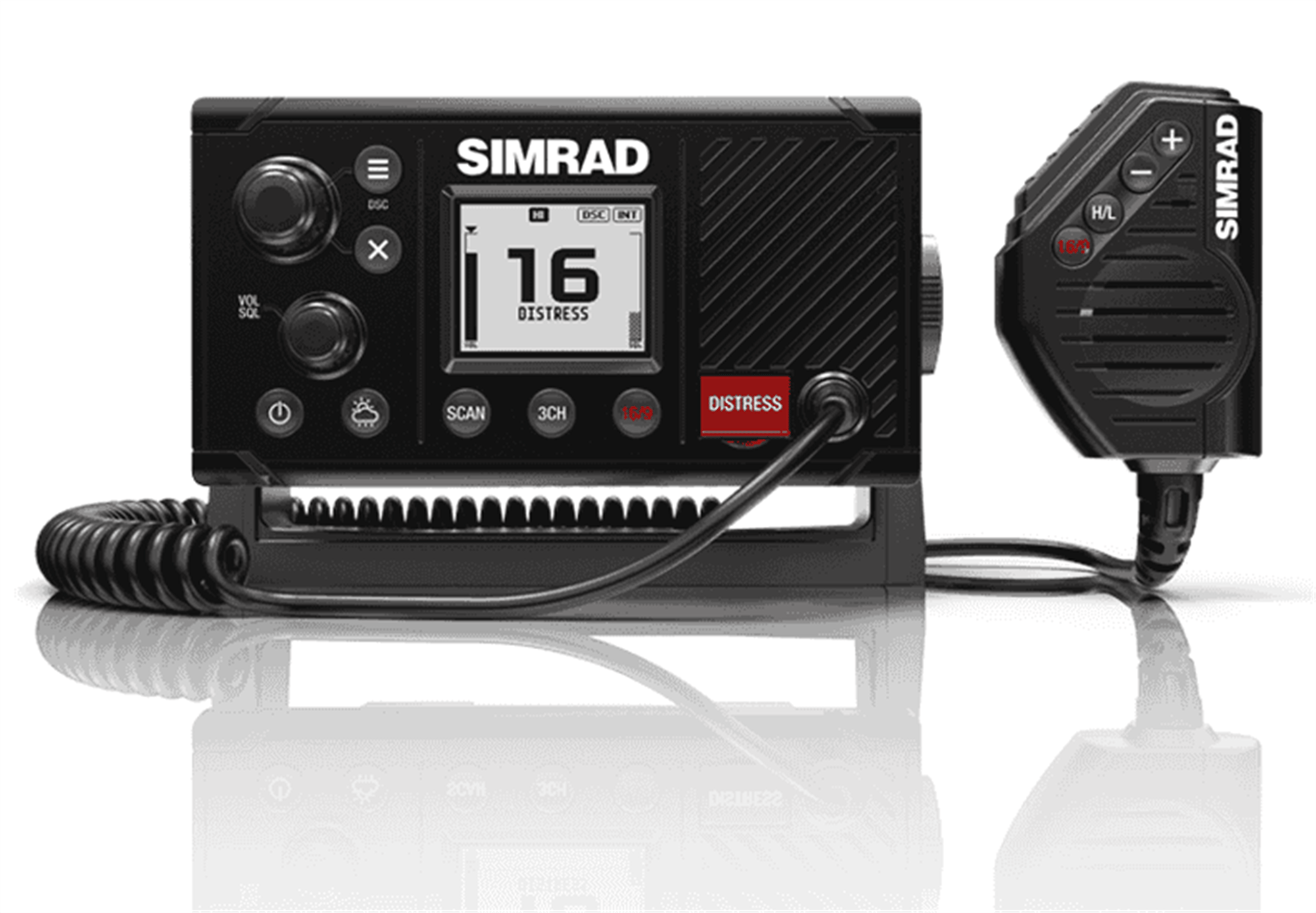

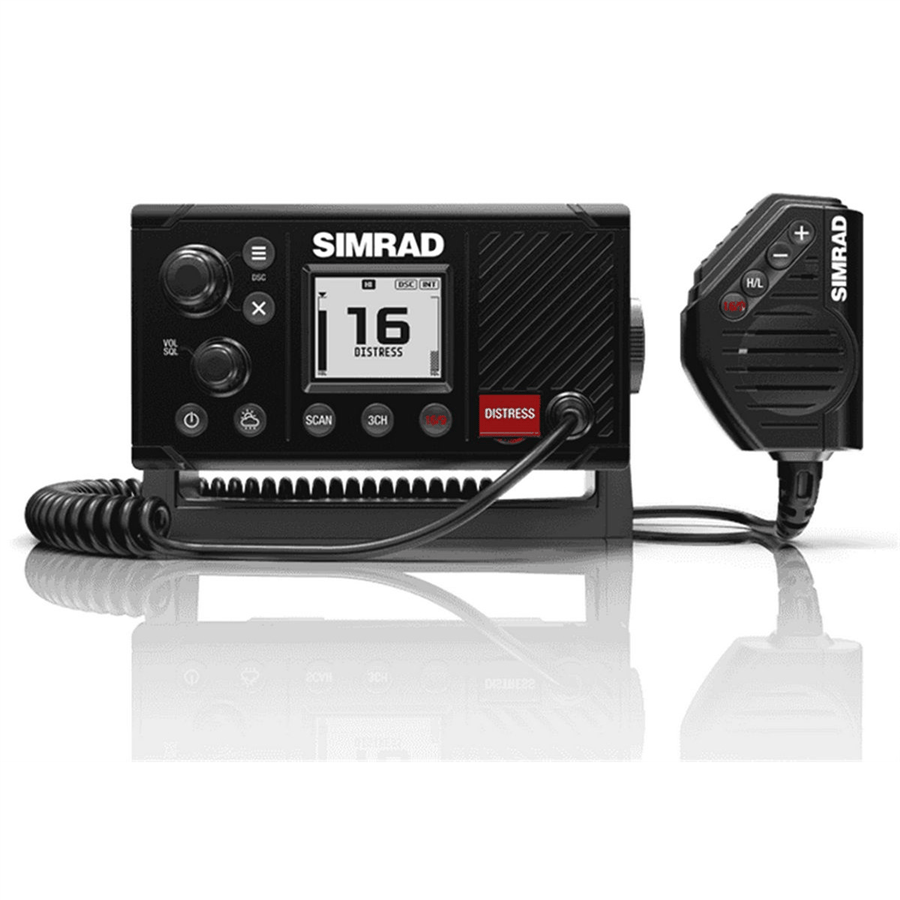

RS 20 VHF Marin Telsiz
RS 20 VHF Marin Telsiz
RS 20 VHF Marin Telsiz

RS 20 VHF Marin Telsiz

Fiyat : ₺33.093,28(KDV Dahil)
Favorilere Ekle

Simrad RS20 Class D DSC VHF Radio: Entry level VHF radio with NMEA2000 connectivity for GPS position, backlight control and night mode grouping with Simrad MFD’s.

Simrad RS20

  • Replaces the current RS12 entry level VHF
  • NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD’s
  • NMEA0183 connectivity
  • Receive GPS data from a compatible GPS unit
  • Output DSC (for DSC call), DSE ( for enhanced position when doing Lat/Long request and Buddy Track).
  • New front mountable mechanical design for easy installation
  • Low profile design to align with style of Simrad MFD’s
  • Full inbuilt country specific channel banks
  • no requirement for LC programming or cloning

New features

Start up wizard

  • Region & Country selection
  • Enter MMSI
  • Call sign
  • GPS source selection
  • Time offset

Improved SCAN features

  • ALL SCAN
  • ALL CHANNELS + 16
  • MY CHANNELS
  • MY CHANNELS + 16

Favourites shortcut

  • Customizable favourite functions
  • Defaults
  • Contrast
  • Sensitivity
  • VHF info

Channel name

  • My Channels
  • Set Channels as favourite channels
  • Enter favourite channel mode by long pressing channel dial
  • Only favourite channels will be included in channel scrolling

Track up to 5 Buddies!

Track buddy is a feature that automatically requests the position of another VHF radio. Simply enter the MMSI of the VHF into your contact list, then start tracking!

  • New feature for Simrad entry level VHF radios
  • Polls your contacts for their Lat/Long position automatically
  • Can be set to 1, 5, 15, 30 or 60 minute intervals
  • Displays the position on a compatible chart plotter
  • Great for keeping track of friends, family or vessels you need to know the position of


General

Frequency Range: Transmit 156.025～157.425 MHz
Frequency Range: Receive 156.050～163.275 MHz
Number Of Channels US / INT
Oscillate Mode PLL
Modulation FM(16KOG3E) DSC(16K0G2B)
Channel Spacing 25KHz
Frequency Stability ±5 PPM

Temperature range_-15°C to +55°C (5°F to 131°F)

Normal Working Voltage +13.6 V DC
Minimum operating Voltage ≤10 V DC
Low battery detect Voltage 10.5 ± 0.5 V DC
Digital Selectivity Calling (DSC) Class D

RECEIVER

Intermediate Frequency : 1st 38.85/21.7 MHz
Intermediate Frequency : 2nd 450 KHz
Sensitivity : 12dB SINAD ≤-6 dBuV(EMF)
Squelch Sensitivity: at tight ≤ 6 dBuV(EMF)

Spurious Response Rejection Ratio ≥70 dB

Adjacent Channel Selectivity ≥70 dB
Intermodulation Response ≥68 dB
S/N at 3KHz Dev. ≥40 dB
Audio Output Power At THD 10% ≥2.5 W
Audio Distortion ≤10 %
Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz dB
Current Drain : Max Audio Power ≤1.5 A
Current Drain : Stand-By ≤0.5 A
2ND RX Sensitivity For 12dB SINAD ≤ 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm ≤ 10-2

Transmitter

Frequency error ≤±1.5KHz
RF Power Hi23W ± 2W :Lo 0.8W ± 0.2W
Maximum Deviation ≤± 5 KHz
S/N at 3KHz Dev. ≥40 dB
Modulation Distortion ±3KHz ≤10 %
Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz
Spurious/Harmonic Emissions: Hi/LO ≤0.25uW
Modulation Sensitivity ≤15 mV
Current Drain At 12V DC Hi Power ≤6A: Lo Power ≤1.5A
DSC TX deviation at 1.3K 2.6±0.26 KHz
DSC TX deviation at 2.1K 4.2±0.42KHz
ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz

Not:
  • Bu ürün Türk bayraklı teknelerde, kıyı emniyeti genel müdürlüğünün izinine tabidir.
