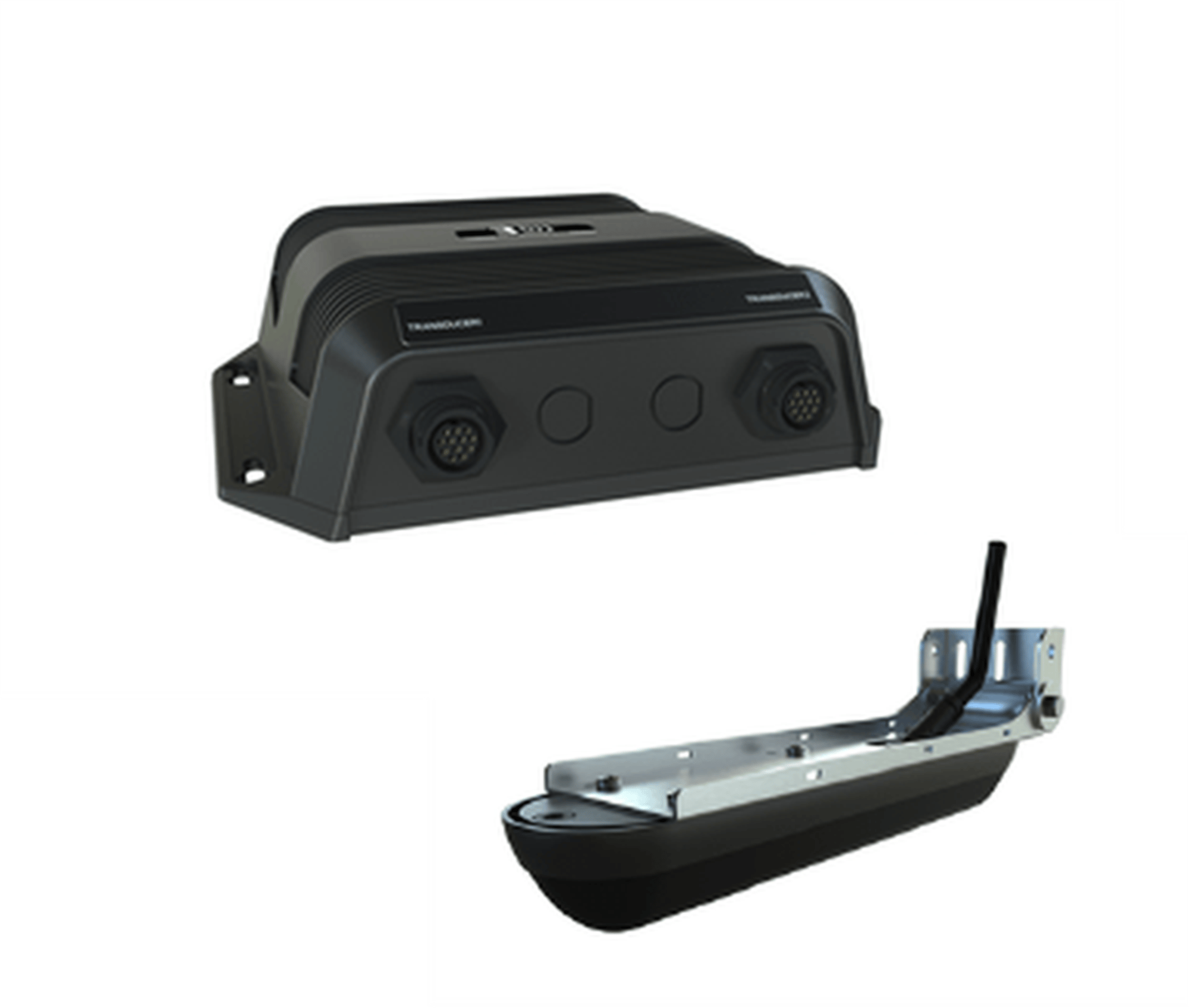

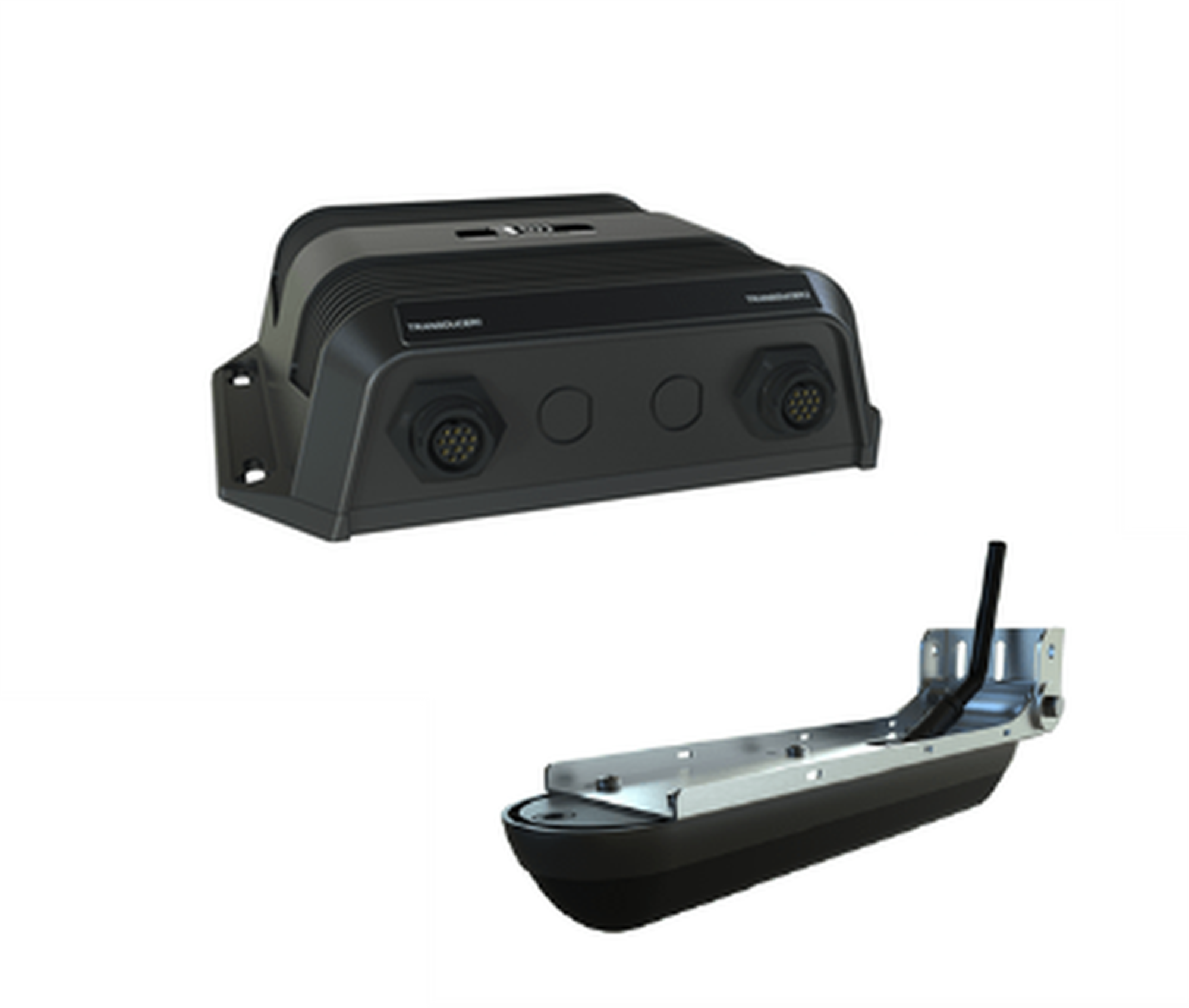

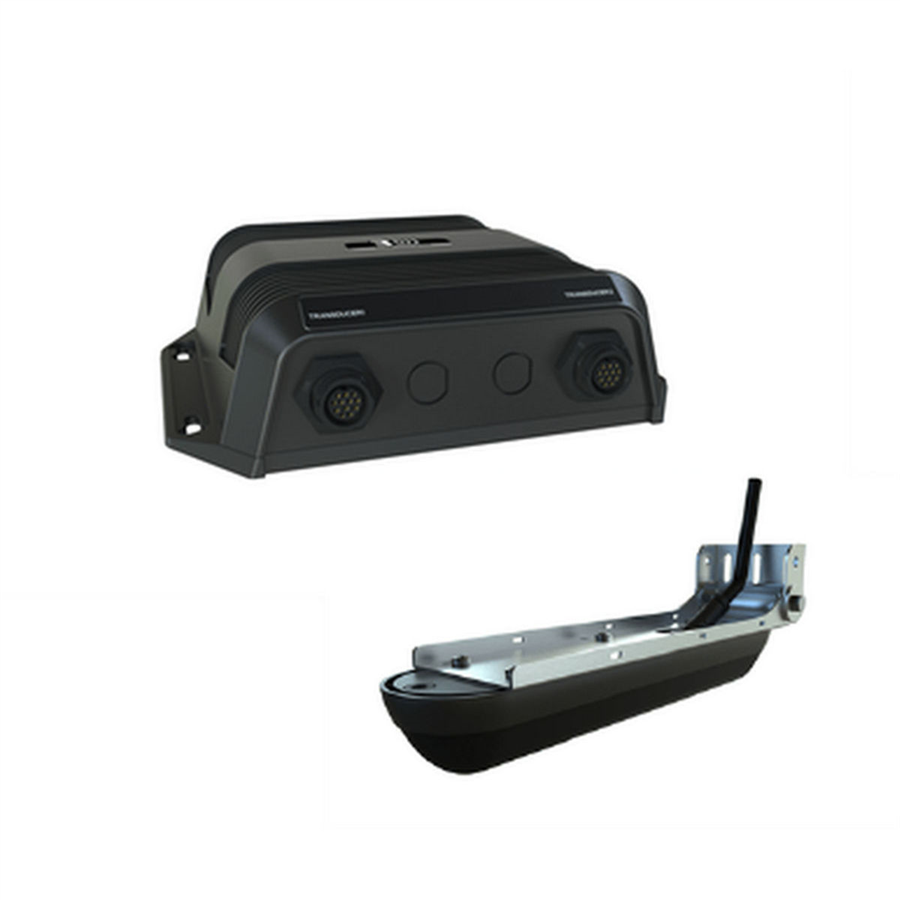

StructureScan® 3D Modül + Transducer (000-12395-001)

Simrad StructureScan 3D Module and Transom mount transdcuer

StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.

StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.

Easier Visualization

• 3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.

Master The Bottom Line

• For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.

Technical/Environmental Product Width180 mm / 7.1 inProduct Height57 mm / 2.2 inProduct Weight0.9 kg / 2 lbsOperating Temperature-28° to 75° C (-20° to 167° F)Water ResistanceIPX-7Power Supply (Supply Voltage)12 or 24 V DC(max range 9 V to 32 V DC)

Sonar Performance

StructureScan

Output Power500w RMSMax Side Range600ft each sideMax Down Range300 ftFrequency455kHz

Six Cable Connections

Ethernet3 portsPower4 Pin power connector
