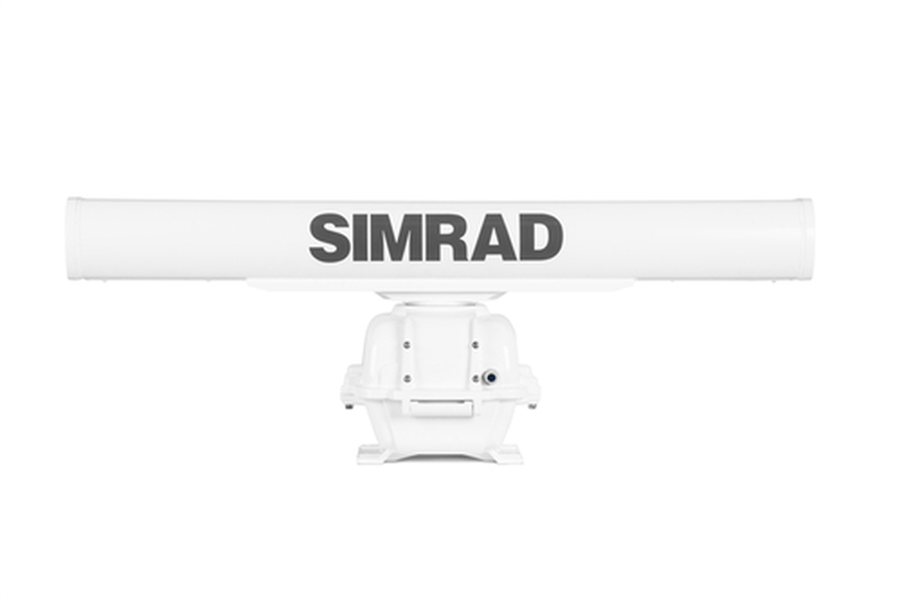

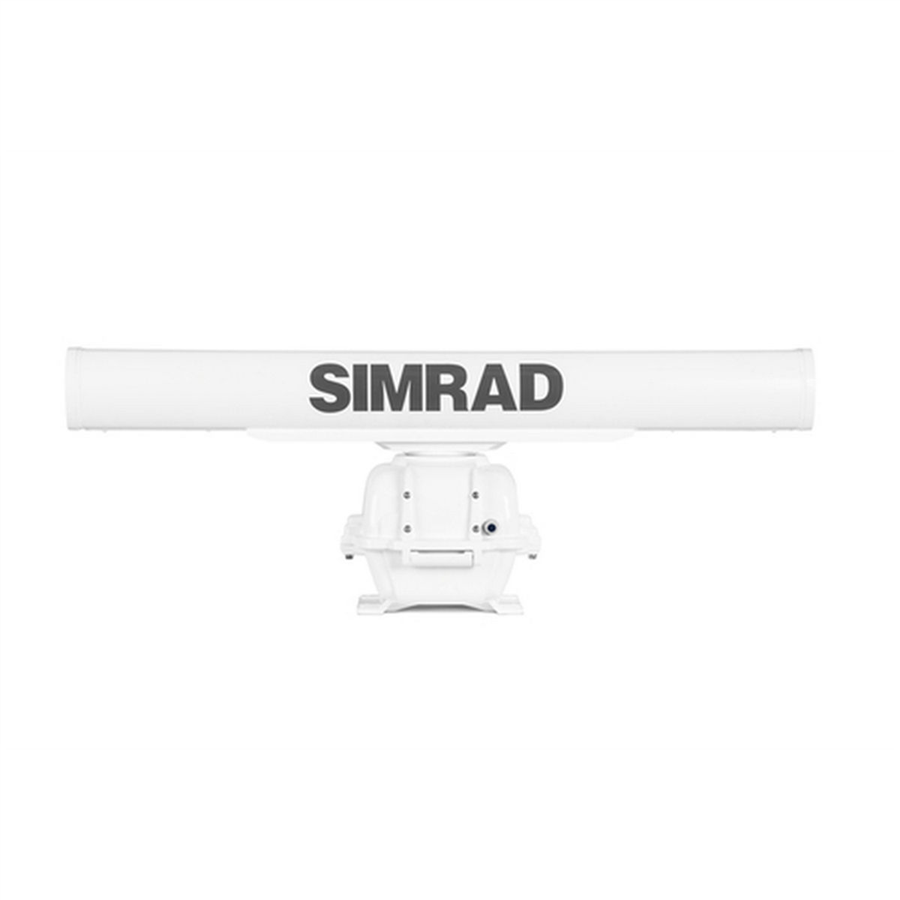

TXL-10S-4 LOW EMSN 10Kw Açık Anten Su Üstü Radarı

TXL-10S-4 LOW EMSN 10Kw Açık Anten Su Üstü Radarı (PQRSUVX21)

Marka : Simrad

Fiyat : €6.853,20(KDV Dahil)

TL Fiyat : ₺384.807,18(KDV Dahil)

Stok Miktarı : 0

₺51.966,07 `den başlayan taksitlerle

Favorilere Ekle

Fiyat Düşünce Haber Ver

Artır Azalt

Simrad TXL-10S-4: 10 kW 4 ft open array low emission radar kit. With 20m antenna cable, Radar processor,Ethernet cable Yellow MM 2 m (6.5 ft), Ethernet adapter cable RJ45 - 5 Pin yellow.

10kW HD Digital Radar

Our new Low Emission 10kW HD open array digital radar boasts exceptional detection of small or distant targets using our advanced Digital Signal Processing technology. Screen clutter in any weather is virtually eliminated, allowing a clear, accurate and easy to interpret image. The 10kW open array is ideal for larger motorboats 50ft+ in length.

New Array Radar available in September 2014.
All new 10kW 4-foot model - great for vessels with limited space
perfect with new Simrad NSO evo2 systems
All models feature new Long-life magnetrons and brushless motors
All models have reduced emission levels that exceed 2015 regulatory changes and offer safer operation
Compatible with all Simrad current radar displays: NSE, NSS, NSS evo2 and NSO evo2
Meet tough IMO IEC62388 Annex D target detection specifications and triggers RACONS and SARTS at required 5nm range
Commercial design with 100kt sustained windload rating
Automatic Tune, Gain and Sea Clutter adjustments
Automatic Harbour and Offshore modes
Dual EBL/VRM and Dual Guard zones
Radar overlay on charts and 10-target MARPA tracking with optional heading sensor
iPad/Android tablet control with optional Go Free wireless module
For 24V DC systems only

NOTE: TXL-10S-6 replaces TX10S-1. The following part is obsolete: TX10S-1 (TX10S-1 TX10S 10KW 6'OPN ARRY W/20M CA). Please order 000-11478-001 instead.

Type of emission	PON - Passed FCC/IC/R&TTE Type Certification:, FCC ID: CKENKE2103, IC ID: 768C-NKE2103, R&TTE: Telefication CE0560
Ambient conditions	According to IEC60945-4, Operating Temperature: -25 to +55°C, Relative humidity: +40°C, 93% RH,
Vibration	Amplitude 2 to 13.2Hz, +/-1mm +/- 10% Amplitude 13.2 to 100Hz, Gravity acceleration 7m/sec2
Waterproof	IPX6
Relative wind velocity	51.5 m/sec (100 Knots)
Power consumption	230W (Max.) in maximum wind velocity
DC input	21.6 to 31.2 V (DC24 Volt Systems)
Pre-heating time	Minimum 90 sec
Outside dimensions	Height 458mm x Swing Circle Diameter 1320mm (4 ft), Height 458mm x Swing Circle Diameter 1910mm (6 ft)
Mass	34kg+/-10% (4ft) / 36kg+/-10% (6ft)
Plane of polarization	Horizontal Polarization
Beam width	Horizontal 1.8°+/-10% (4ft, -3dB width), Horizontal 1.2°+/-10% (6ft, -3dB width), Vertical 20° +20% (4/6ft, -3dB width)
Side lobe level	Below -26dB max. (4/6ft, within ±10°), Below -30dB max. (4/6ft, outside ±10°)
Rotation	27 rpm (4/6ft, Min 20rpm at Max 100Knots)
Transmitter frequency	9410±30MHz
Peak power output	10kW±50% under any pulse condition
Transmitter tube	Magnetron NJRC Model MAF1565N
Pulse length	Pulse Repetition Frequency 0.08µS+/-30%/2250Hz +/-5%, 0.25µS+/-25%/1700Hz +/-5%, 0.50µS+/-25%/1200Hz+/-5%, 0.80µS+/-25%/750Hz+/-5%, 1.0µS+/-25%/650Hz+/-5
Duplexer	Circulator H-6AJRD00001 FCX-68 and Diode Limiter NJS6930
Mixer	MIC front-end - Model NJT1969
IF amplifier	Center frequency: 60MHz +/-3MHz
Bandwidth	20MHz +/-3MHz (0.08µS), 6MHz +/ -2MHz(0.25µS, 0.5µS), 3MHz +/-1MHz (0.8µS, 1.0µS), Gain\|90dB min, Characteristic\|Log, Output: -2V for 100dB typical, Bandwidth controlled by serial port
Noise figure	NJT1969 @ 6dB (Average) at front-end input.
Com Port	RS485 9600bps Half Duplex, Propriety Digital COM Specification
Standard scanner cable length	20m (packed in carton)
Maximum allowable scanner cable length	30m
